What type of mounting resin gives the best edge retention in metallography?

Hard thermosetting resins (diallyl phthalate, hard filled epoxy) give the best edge retention. The mounting resin hardness should be matched to the specimen hardness — a resin that is too soft relative to the specimen causes the specimen to polish faster than the resin, creating rounding at the edges (relief). For maximum edge retention on coated specimens, electroless nickel plating before mounting is the standard aerospace practice.

Collection: Metallographic Mounting

Q: When should I use hot compression mounting vs. cold cure epoxy in metallographic preparation?

Hot compression mounting (150–180°C, 150–300 bar) is preferred for high-throughput labs with temperature-stable specimens. Cold cure epoxy is required for temperature-sensitive specimens including electronic components, PCBs, semiconductor devices, lead and zinc alloys, and polymer-coated specimens.

Not sure which product or specification is right for your application?
Request a complimentary sample — specify your material, equipment, and requirements. Ships within 2 business days.

Request Free Sample →

Metallographic Mounting Consumables — Hot Compression and Cold Cure Epoxy

Beta Diamond Products supplies thermosetting and cold-cure epoxy mounting consumables for metallographic sample preparation. Proper mounting protects specimen edges, provides a standardized geometry for grinding and polishing, and — when the resin hardness is correctly matched to the specimen — prevents the differential material removal (relief) that causes the specimen surface to become non-planar during polishing.

Hot Compression Mounting

Thermosetting resins (phenolic/Bakelite, diallyl phthalate, acrylic-filled epoxy) are cured at 150–180°C under 150–300 bar pressure in a mounting press. Cycle time is 5–8 minutes per mount. Hot mounting is appropriate for all temperature-stable specimens: most steels, cast irons, aluminum alloys, copper alloys, titanium alloys (if below 150°C for the mounting cycle), and nickel superalloys.

Resin types and their applications:

Phenolic (Bakelite): Standard, low-cost, opaque. Good hardness (HV ~120). Not transparent — cannot visually align specimen before mounting.
Diallyl phthalate (DAP): Harder than phenolic (HV ~150). Better edge retention. Used for hard alloys and coatings requiring maximum edge retention.
Conductive Bakelite (carbon-filled): Electrically conductive. Required when the mounted specimen will be examined in a SEM without gold or carbon coating (grounding through the mount).
Transparent acrylic: Clear; allows visual verification of specimen orientation. Lower hardness — use only for soft materials where edge retention is not critical.

Cold Cure Epoxy Mounting

Two-part epoxy systems cured at room temperature, required for all temperature-sensitive specimens. Selection criteria:

Standard structural epoxy (cure time 8–12 hours): Highest hardness; best edge retention; suitable for most applications. Used for electronic components, polymer-coated specimens, lead and zinc alloys.
Fast-cure acrylic (cure time 20–30 minutes): Lower hardness than standard epoxy but adequate for most metals. Useful in high-throughput labs where cold mounting cycle time must be minimized.
Low-viscosity epoxy for vacuum impregnation: Viscosity <500 cP at room temperature. Required for porous specimens (powder metallurgy parts, porous ceramics, geological specimens with open porosity) where a standard-viscosity epoxy would not fully infiltrate the pore structure. Used with a vacuum impregnation system to force the epoxy into the pores before cure.

Frequently Asked Questions

When should I use hot compression mounting vs. cold cure epoxy?

Hot compression mounting (150–180°C, 150–300 bar) is preferred for high-throughput labs with temperature-stable specimens: steels, cast irons, aluminum alloys, copper alloys, nickel superalloys. Cold cure epoxy is required for temperature-sensitive specimens including electronic components, PCBs, semiconductor devices, lead and zinc alloys, polymer-coated specimens, and any specimen where the thermal or mechanical stress of the mounting press would damage the microstructure or degrade the bond being examined.

How do I vacuum-impregnate a porous specimen before mounting?

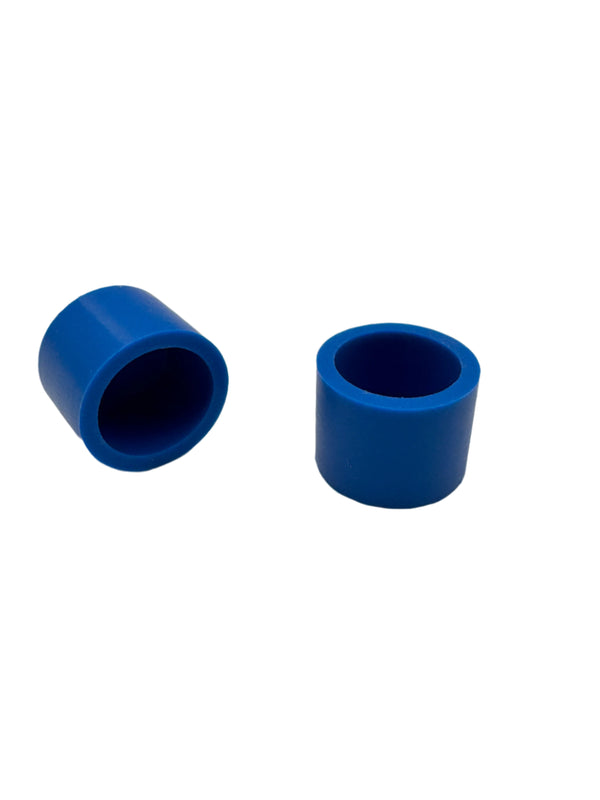

Vacuum impregnation is performed with a low-viscosity cold cure epoxy and a vacuum impregnation chamber or bell jar. Place the specimen in a mold. Pour low-viscosity epoxy to cover the specimen. Apply vacuum (50–100 mbar) for 10–15 minutes to evacuate air from the pores. Release vacuum — atmospheric pressure forces the liquid epoxy into the now-evacuated pore structure. Allow to cure under vacuum or at atmospheric pressure per the epoxy instructions. Verify impregnation by cross-sectioning a test specimen and examining for filled vs. unfilled porosity at low magnification.
