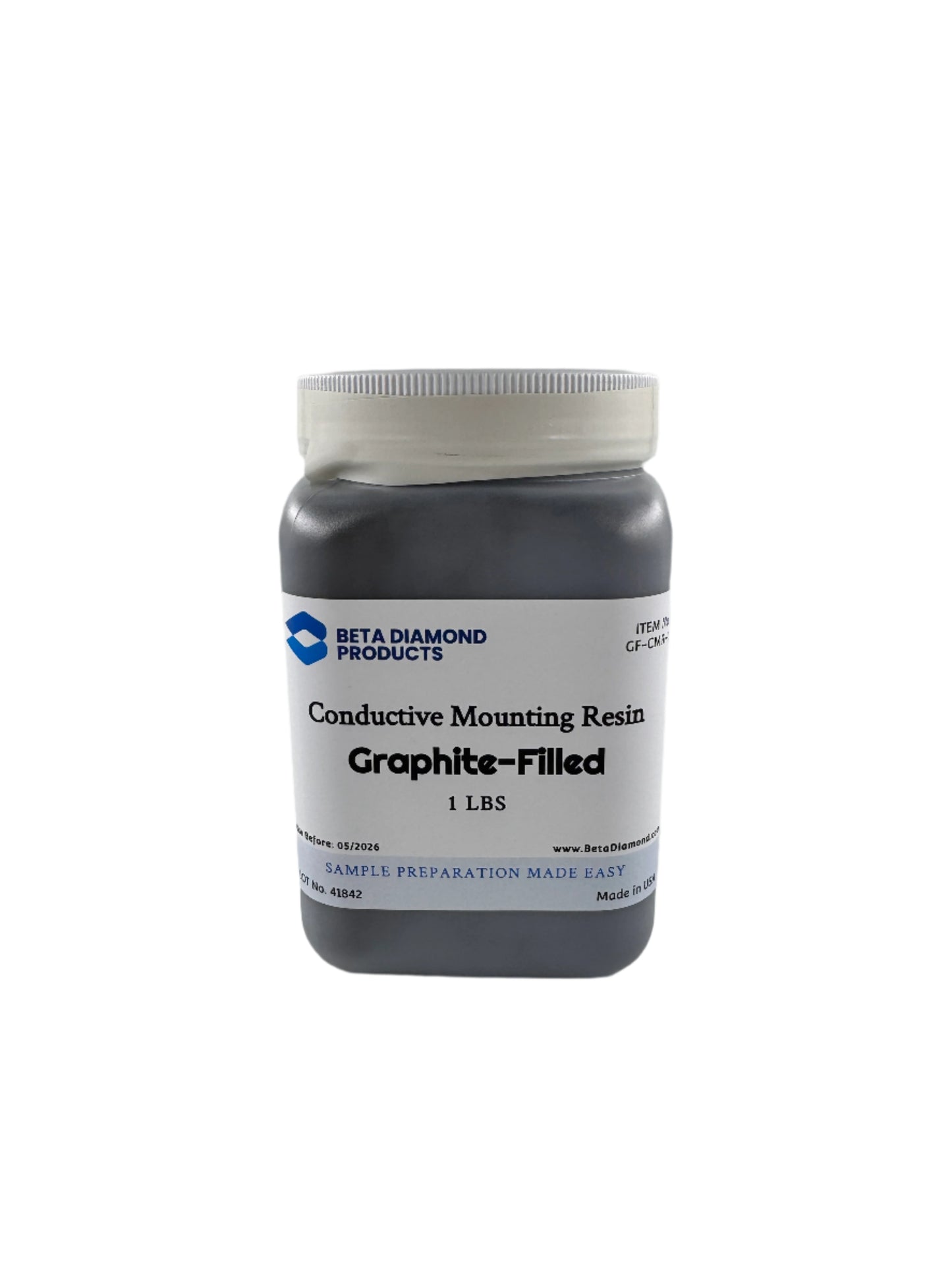

Compression Mounting Resin - Graphite-Filled
Comparable to Buehler KonductoMet, Struers PolyFast, and Allied High Tech conductive mounting compound for the same mounting step — at 20 to 40 percent lower cost.
Overview
Graphite-Filled Conductive Mounting Compound
What This Product Is
A conductive, graphite-filled hot compression mounting compound. The graphite filler makes the cured mount electrically conductive, so the specimen can be examined or processed with techniques that require a conductive path — without applying tape, paint, or coatings.
Intended Use in Metallography
Used at the mounting step when the mount must conduct electricity. Selected when:
- Preparing samples for SEM (scanning electron microscopy) and EBSD
- Electrolytic polishing or etching, which need a conductive mount
- Avoiding conductive tabs, paint, or coatings on the mount
Typical Applications
- SEM and EBSD specimen preparation
- Electrolytic polishing and etching
- Electronic materials and conductive-path failure analysis
Beyond routine metallography, the conductive mount is commonly used across electron microscopy and electronics failure analysis, wherever a conductive mount is required.
When This Product Is NOT Ideal
- For routine light-microscopy work where a conductive mount adds unnecessary cost (use phenolic)
- When maximum edge retention is the priority (use the epoxy compound)
Where This Fits in the Preparation Process
- After sectioning
- Before grinding, polishing, and conductive examination or processing
Specifications
| Type | Graphite-filled, electrically conductive hot compression mounting compound |
| Purpose | Conductive mount for SEM/EBSD and electrolytic work |
| Cure | Heat and pressure in a mounting press |
| Sizes | 1 lb, 5 lb, 25 lb — see options |
| Application | Conductive metallographic specimen mounting |
| Size | 1 lb, 5 lbs, 25 lbs |
| Custom sizing | Custom sizes and concentrations are made to spec if what you need is not listed |
| Compatibility | Buehler, Struers, LECO, Allied, and PACE — and all other major brands. |
Compatibility and Equivalents
A conductive, graphite-filled hot compression mounting compound for the same mounting step as these brand products:
Runs in Buehler, Struers, LECO, Allied, and PACE mounting presses with no change to your process. It is a comparable product for the same step — not a branded or drop-in item.
Same grading, typically 20 to 40 percent lower in price.
Request a free sample and test it on your own press.
Named brand products are referenced only to identify the comparable item and prep step. We do not claim our product is identical to, or a replacement for, any trademarked product, and no affiliation or endorsement is implied.
Frequently Asked Questions
Why use a conductive mounting compound?
A conductive mount provides an electrical path for techniques that need one — SEM, EBSD, and electrolytic polishing or etching — without adding tape, paint, or coatings to the specimen.
What makes the compound conductive?
A graphite (carbon) filler dispersed through the compound gives the cured mount its electrical conductivity.
When do I actually need a conductive mount?
When the examination or processing requires it — most commonly SEM/EBSD imaging and electrolytic polishing or etching. For standard light microscopy, a non-conductive mount is usually fine.
