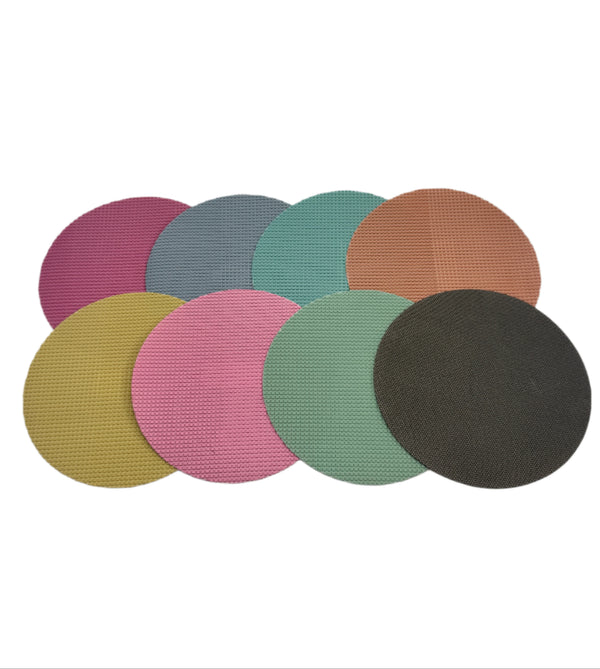

Diamond Grinding Discs and Lapping Films
Diamond grinding and lapping discs for fine, flat, controlled material removal on hard materials. Our diamond discs are supplied in metal-bond and resin-bond types, in grits from 120 (P120) through 1200 (P4000), with PSA or magnetic backing, comparable to the diamond grinding and lapping products from Buehler, Struers, and Allied High Tech, typically 20 to 40 percent lower in price. Custom sizes, grits, and films are made to order. Used across metallography, ceramics, optics, and tool-and-die lapping.
Metal Bond or Resin Bond?
Both types hold diamond in a bonded matrix and remove material at a high rate under lubricant, but they wear and finish differently:
| Bond | Behavior | Best For |
|---|---|---|
| Metal bond | Holds its form and diamond charge the longest; highest removal rate and flatness retention; longest life and lowest cost per sample. | Very hard materials — ceramics, cemented carbides, hardened tool steels — and high-throughput planar grinding. |
| Resin bond | Softer matrix (often channeled to clear debris) that gives a finer, lower-damage surface as it releases diamond. | Finer grinding steps and heat- or damage-sensitive materials transitioning into polishing. |
Grit and Step
Grits run from 120 (P120) for planar grinding through 1200 (P4000) for fine grinding before polishing. Step down through the grit sequence without skipping a grade, removing the prior scratch pattern completely at each step. One metal-bond disc can replace several silicon carbide paper steps on hard materials, holding flatness across many samples and lowering cost per use. Both bonds are available with PSA or magnetic backing to fit standard platens.
When to Use a Diamond Disc Instead of SiC Paper
Above roughly HRC 60 (HV 700) — cemented carbides, technical ceramics, silicon carbide, boron carbide — silicon carbide paper wears too quickly and produces excessive relief. A diamond grinding disc removes material efficiently, holds flatness, and lasts far longer, which is why it is the standard grinding medium for hard-material workflows and a common replacement for the coarse SiC steps.
Frequently Asked Questions
Metal bond or resin bond — which do I need?
Use a metal-bond disc for the longest life and best flatness on very hard materials (ceramics, carbides, hardened steels) and for high-throughput planar grinding. Use a resin-bond disc for the finer grinding steps and for heat- or damage-sensitive materials, where its softer matrix leaves a lower-damage surface as it transitions the sample toward polishing.
When should I use a diamond grinding disc instead of SiC paper?
Use a diamond disc above about HRC 60 — cemented carbides, technical ceramics, and other very hard materials — where SiC paper wears out quickly and causes relief. The diamond disc holds flatness, removes material efficiently, and lasts across many samples, lowering cost per sample on hard-material workflows. Grits run 120 (P120) through 1200 (P4000).
Do you make custom sizes and grades?
Yes. Custom diamond discs, films, grits, bonds, and backings are made to order — specify your platen diameter, grit, bond type, and backing (PSA or magnetic) and we will confirm the specification.
