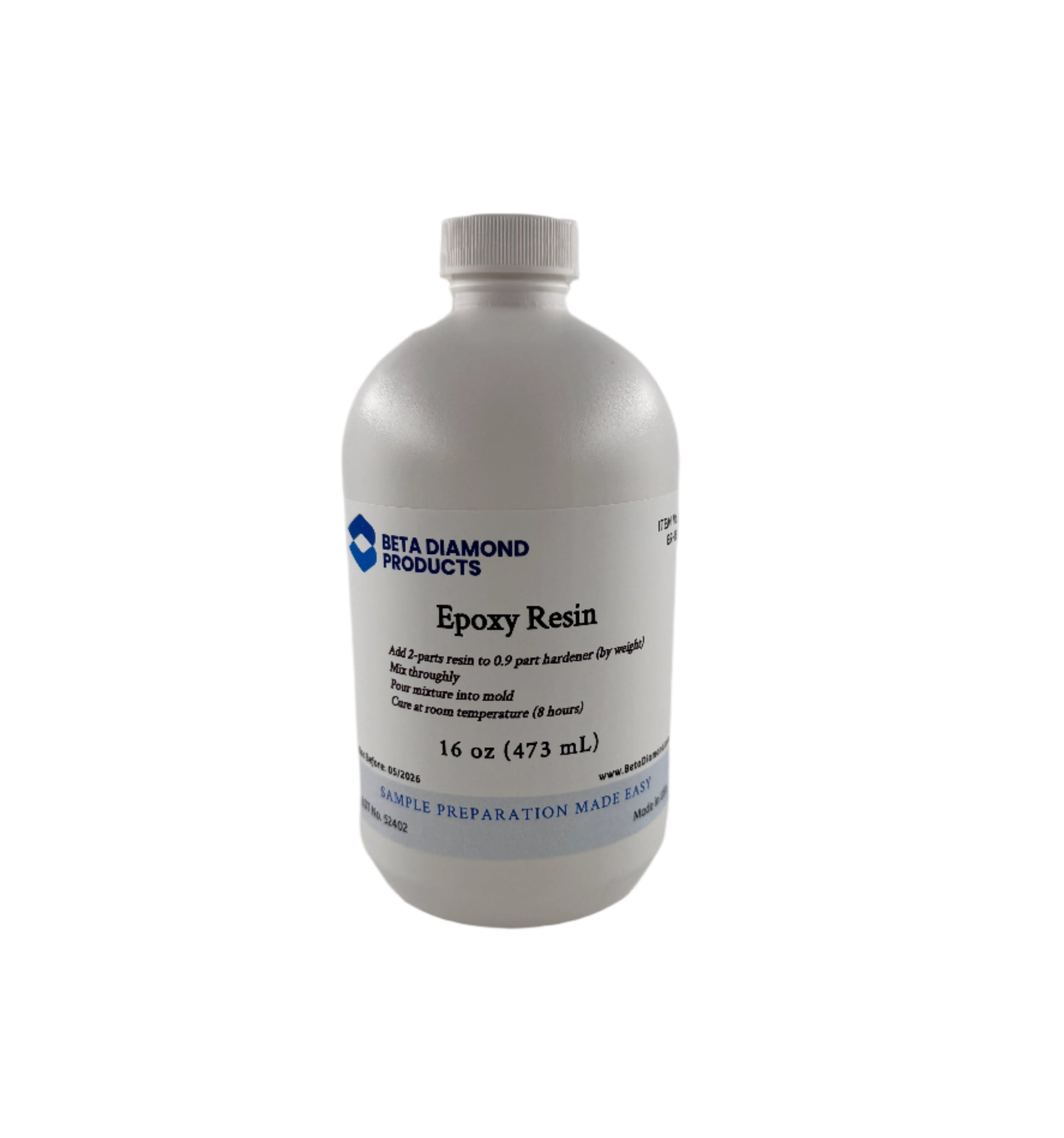

Epoxy Resin (Low-Viscosity)
Overview
Epoxy Resin (Low-Viscosity)
What This Product Is
A low-viscosity, two-part castable epoxy for cold mounting — cured at room temperature by mixing the resin with our epoxy hardener, with no heat or pressure. The low viscosity lets it flow into cracks, pores, and around delicate features for excellent penetration and minimal shrinkage, producing clear, hard mounts with strong edge retention.
Intended Use in Metallography
Used at the mounting step when heat- or pressure-sensitive specimens, good penetration, or clarity are required. Selected when:
- Mounting fragile, porous, or heat-sensitive specimens that can't take compression mounting
- Vacuum impregnation of cracks and pores is needed
- A clear mount is wanted to see the specimen
- Strong edge retention with low shrinkage matters
Typical Applications
- Fragile, porous, or friable specimens
- Electronic components and PCBs
- Failure-analysis samples requiring impregnation
Beyond metallography, low-viscosity castable epoxy is also used in petrography (impregnating and mounting rock and mineral specimens for thin sections) and in electronics and failure analysis.
When This Product Is NOT Ideal
- For high-throughput routine mounting where hot compression mounting is faster
- When a fast turnaround is needed (castable epoxy cures over hours)
Where This Fits in the Preparation Process
- After sectioning
- Before grinding and polishing
Specifications
| Type | Two-part castable (cold-mount) epoxy resin, low-viscosity |
| Cure | Room temperature, mixed with epoxy hardener (no heat/pressure) |
| Strengths | Excellent penetration, low shrinkage, clarity, edge retention |
| Use | Suitable for vacuum impregnation |
| Application | Castable metallographic and petrographic mounting |
| Size | 8 oz, 16 oz, 32 oz |
| Custom sizing | Custom sizes and concentrations are made to spec if what you need is not listed |
| Compatibility | Buehler, Struers, LECO, Allied, and PACE — and all other major brands. |
Compatibility and Equivalents
A low-viscosity castable (cold-mount) epoxy resin for the same room-temperature mounting step served by the castable epoxy systems from Buehler, Struers, and Allied High Tech. Used with our epoxy hardener, with no change to your process. It is a comparable product for the same step — not a branded or drop-in item.
Same use, typically 20 to 40 percent lower in price.
Request a free sample and test it on your own bench.
Named brand products are referenced only to identify the comparable item and prep step. We do not claim our product is identical to, or a replacement for, any trademarked product, and no affiliation or endorsement is implied.
Frequently Asked Questions
What is low-viscosity epoxy used for?
Cold mounting specimens at room temperature, and impregnating cracks and pores. Its low viscosity gives excellent penetration and minimal shrinkage, producing clear, hard mounts.
Do I need the hardener too?
Yes. Castable epoxy is a two-part system: mix the resin with the epoxy hardener at the correct ratio to cure it.
Can it be used for vacuum impregnation?
Yes. The low viscosity makes it well suited to vacuum impregnation of porous or cracked specimens.
Can epoxy resin be used outside metallography?
Yes. It is widely used in petrography for impregnating and mounting rock and mineral specimens, and in electronics and failure analysis, wherever a clear, penetrating cold mount is needed.
