By Jay Shah, Technical Team, Beta Diamond Products
Soft metals smear because the abrasive plows them instead of cutting them. Metal flows ahead of each particle and folds back over the surface, burying the true microstructure under a thin deformed skin that looks polished and lies. The cure is a combination, not a single trick: light pressure, napless cloths, polycrystalline diamond with generous lubrication, short step times, and a chemo mechanical final polish that dissolves the smeared film instead of pushing it around. Change all five and aluminum becomes a routine material. Change one and it will keep humbling you.
This problem spans industries: electronics labs cross sectioning solder joints and copper PCB traces, automotive labs checking aluminum castings, electrical manufacturers examining copper conductors. Different products, identical physics.
Why soft metals behave this way
Cutting requires the material to fracture ahead of the abrasive edge. Hard materials oblige. Aluminum, copper, brass, lead, and annealed anything would rather deform than fracture, so under a blunt particle or heavy load the metal squeezes sideways and forward like clay. Each pass smears a fresh film over the last. Pores acquire lids. Graphite in copper alloys disappears. Fine cracks vanish, then reappear after etching somewhere else, which is exactly as alarming as it sounds in failure analysis.
Embedding is the companion problem. Soft surfaces swallow abrasive particles, especially loose SiC from grinding papers, and the embedded particles surface later as contamination or get mistaken for inclusions.
The five changes, in order of impact
Cut the pressure. The biggest lever and the cheapest. Whatever force you use on steel, halve it for aluminum and copper. On automated heads, run the low end of the force range; by hand, let the weight of the mount do most of the work. Plowing is a pressure phenomenon before it is anything else.
Go napless. Soft napped cloths rub, and rubbing is smearing by another name. Hard, flat, low nap or napless cloths present the abrasive squarely so it shears cleanly. Save the soft cloth for the final minute of the final step, if at all.
Use polycrystalline diamond, well lubricated. The many fine self sharpening edges of polycrystalline particles take shallow clean bites where blocky monocrystalline crystals bulldoze. Keep the cloth properly wet; a starved cloth on soft metal smears instantly, because dry friction is heat and heat makes soft metal softer.
Shorten and lighten the grinding side. Minimal time per SiC paper, fresh papers always, light pressure to limit embedding, and consider finishing grinding finer, 800 or 1200 grit ANSI, so the first diamond step has less damage to remove. Some labs grind aluminum on diamond lapping films entirely, which sidesteps embedding.
Finish chemo mechanically. The last whisper of smeared metal will not yield to mechanical polishing alone. Colloidal silica, or 0.05 micron deagglomerated alumina for alloys where silica's pH causes staining, strips the deformed film by mild chemical attack paired with gentle mechanical sweeping. Sixty to ninety seconds. The etch tells you immediately whether it worked: a smeared surface etches blotchy and structureless, a clean one shows crisp boundaries everywhere. One grade note that matters on soft metals: ordinary calcined alumina agglomerates, and the clumps scratch. Deagglomerated grades exist precisely for this work.
A working recipe for aluminum alloys
Grind 320, 600, then 1200 grit ANSI SiC, light pressure, fresh papers, one minute each. Polish 6 micron polycrystalline on a napless woven cloth, three minutes. Then 3 micron, three minutes, then 1 micron on a low nap cloth, two minutes, light force throughout, suspension flowing freely. Finish with colloidal silica on a chemical resistant pad, seventy five seconds, flooding with water for the last ten. Etch with Keller's reagent. If grains do not appear sharp and even, the failure is almost always pressure or a starved cloth, in that order. Copper and brasses follow the same skeleton with a final alumina option where silica tints the surface.

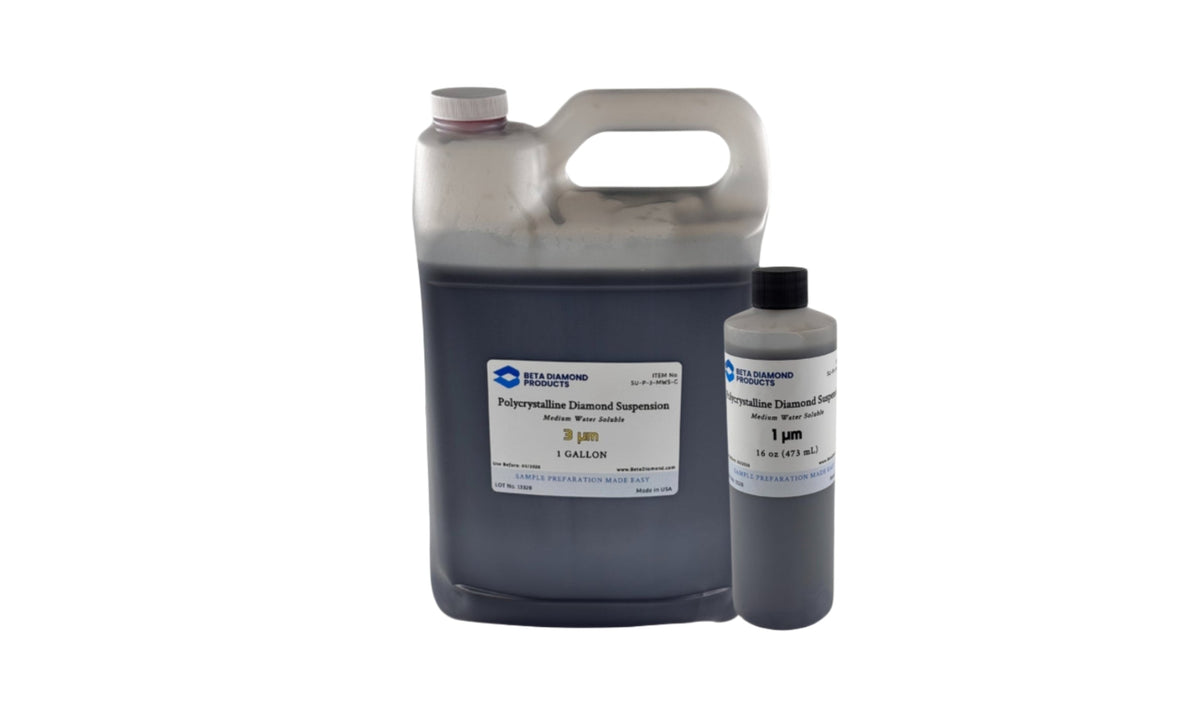

Soft metals punish inconsistent abrasive harder than any other material class, because every oversized particle in a bad distribution leaves a mark the metal faithfully records. Our polycrystalline suspensions are classified tightly for exactly this work, and the free sample program exists so you can prove it on your own samples before spending anything.
