Colloidal Silica Polishing Suspension - Low Crystallizing
Comparable to Buehler MasterMet / MasterMet 2, Struers OP-S / OP-U, and Allied High Tech colloidal silica suspension for the same final polishing step — at 20 to 40 percent lower cost.
Overview

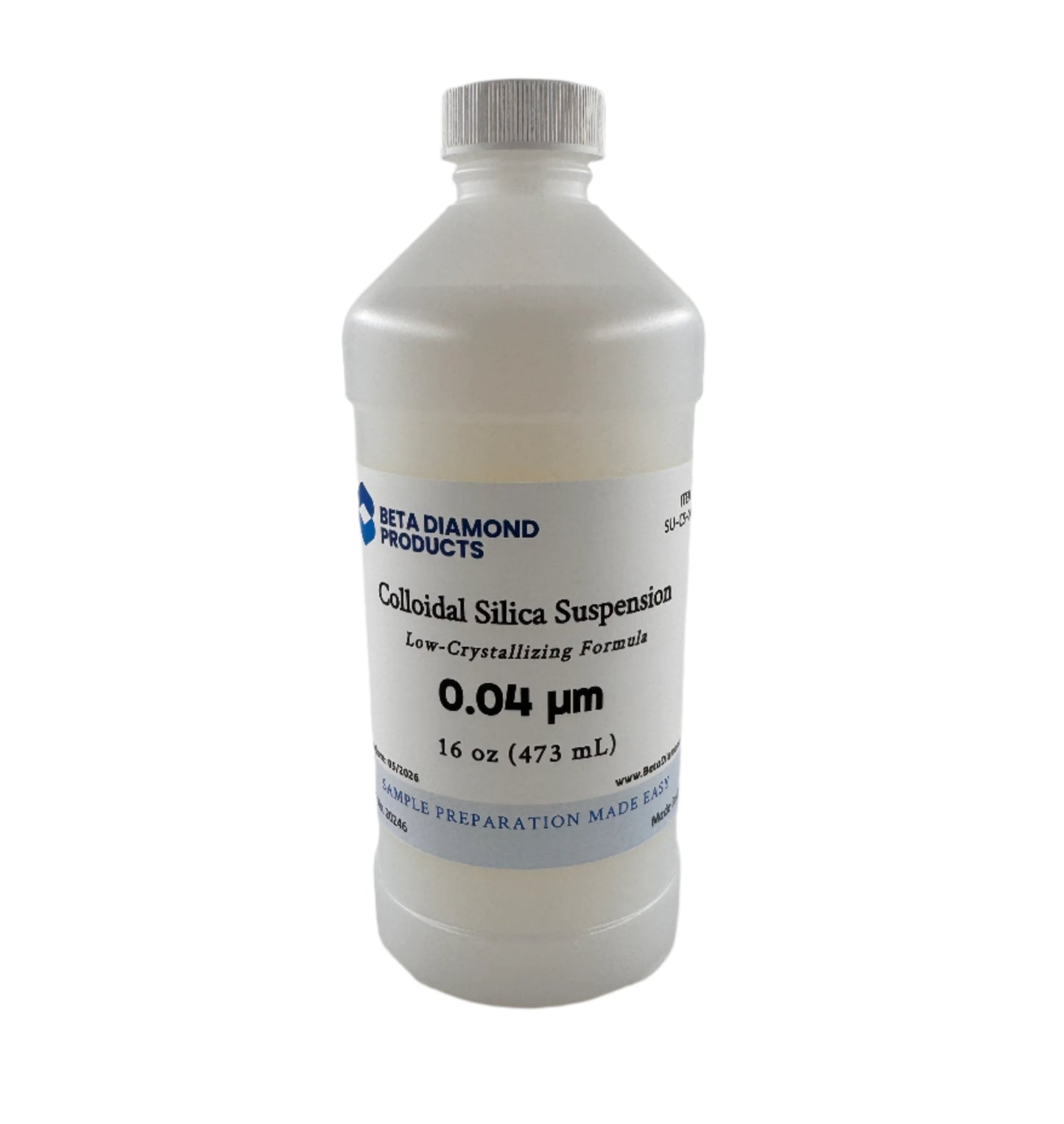

Colloidal Silica Polishing Suspension
What This Product Is
Colloidal silica is a water-based suspension of sub-micron amorphous silica particles (nominally around 0.04 µm) used for the final polishing step in metallographic and materials preparation. It works chemo-mechanically: fine silica particles provide gentle mechanical abrasion while the mildly alkaline carrier adds a chemical polishing action. Together they remove the last of the fine deformation left by diamond polishing and produce a bright, deformation-free surface.
This is a low-crystallizing formulation. Standard colloidal silica dries into hard silica crystals that scratch specimens and clog cloths and equipment. A low-crystallizing suspension resists that drying, which reduces scratching, makes cleanup easier, and extends the life of platens and cloths.
Intended Use in Metallography
Colloidal silica is used as the final polishing step, after diamond polishing, when a deformation-free surface and high reflectivity are required. It is commonly selected when:
- Preparing soft or ductile metals (aluminum, copper, brass) that smear with diamond alone
- Finishing stainless steels, superalloys, and other hard-to-polish alloys
- Preparing surfaces for high-sensitivity examination such as EBSD, where residual deformation must be minimized
Typical Applications
Commonly used when finishing:
- Soft and ductile metals prone to smearing
- Stainless steels and superalloys
- Semiconductors, silicon, and electronic materials
- Ceramics and mixed-phase materials
Beyond metallography, colloidal silica is also used in:
- Semiconductor and wafer final polishing (silicon, sapphire)
- Optics and precision optical components
- Medical implant surface finishing
- Geology and petrography: EBSD and deformation-free mineral preparation
Actual results depend on cloth selection, applied load, polishing time, and rinsing practice.
When This Product Is NOT Ideal
Colloidal silica may not be the best choice when:
- The workflow needs only coarse or intermediate material removal (that is a diamond step)
- Equipment cannot be rinsed promptly, since any colloidal silica left to dry can cause scratching
- A purely mechanical, oxide-free final polish is required for the application
Where This Fits in the Preparation Process
Colloidal silica is typically used:
- After fine diamond polishing
- As the last preparation step before examination
It is normally run on a soft, napless synthetic polishing cloth. Flushing the sample and cloth with water toward the end of the cycle clears residual silica and prevents drying.
Best-Practice Notes
- Do not let colloidal silica dry on the specimen, cloth, or platen; flush with water before it dries
- Rinse and dry specimens immediately after the final step to prevent silica residue
- Use a dedicated cloth for colloidal silica to avoid diamond carryover
- Store away from freezing, which can destabilize the suspension
Specifications
| Abrasive type | Amorphous colloidal silica |
| Particle size | Sub-micron (nominally ~0.04 µm) — see product options |
| Action | Chemo-mechanical (mechanical + mild chemical) |
| Formulation | Low-crystallizing, water-based |
| Application | Final metallographic polishing |
| Use | Manual and automated polishing systems |

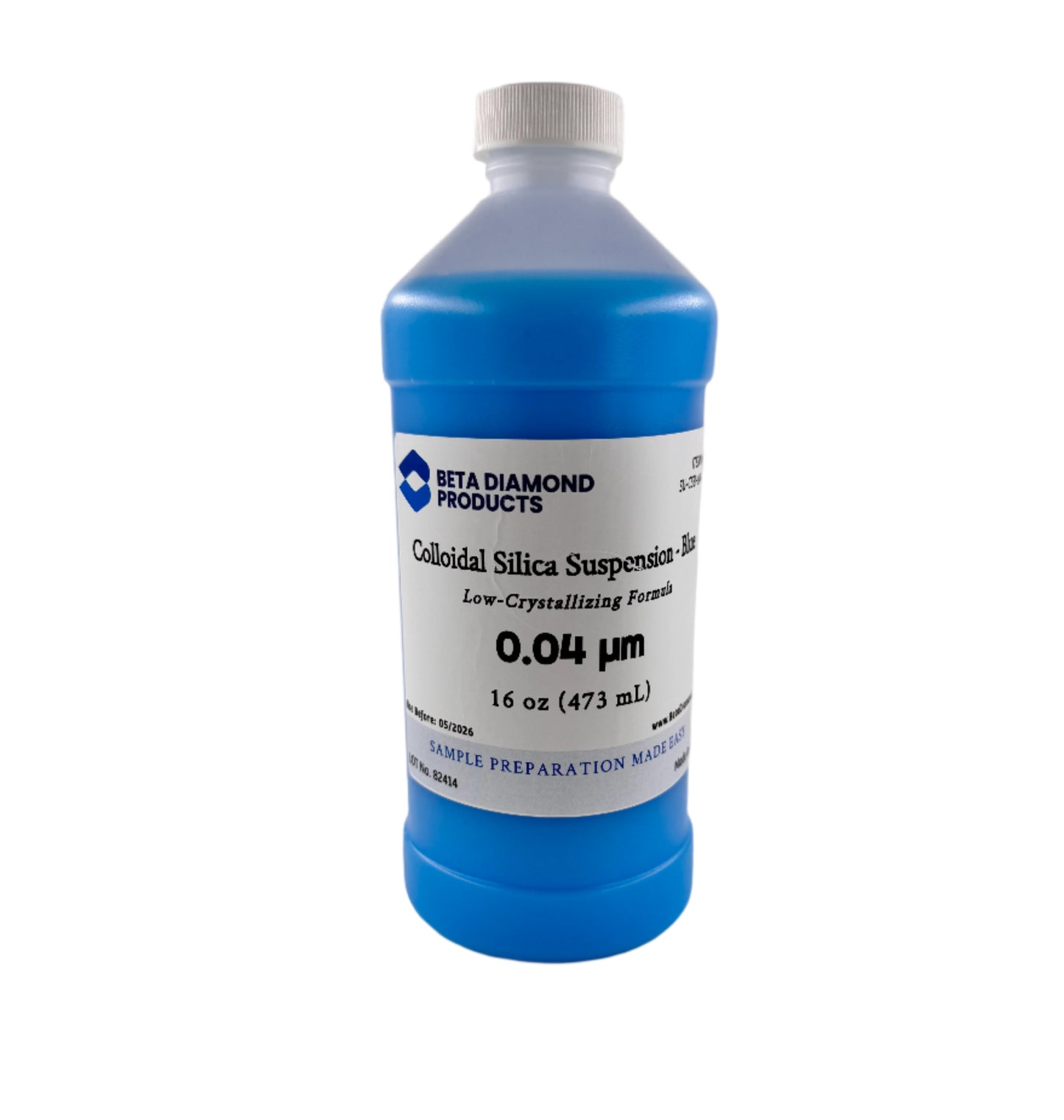

| Type | Colloidal Silica, Colloidal Silica Blue |
| Size | 16 oz, 32 oz, 64 oz, 1 Gallon |
| Custom sizing | Custom sizes and concentrations are made to spec if what you need is not listed |
| Compatibility | Buehler, Struers, LECO, Allied, and PACE — and all other major brands. |
Compatibility and Equivalents
Formulated for the same final polishing step as these brand products:
This low-crystallizing formulation is especially comparable to the non-crystallizing options (MasterMet 2, OP-U). Runs on Buehler, Struers, LECO, Allied, and PACE systems — and all other major brands — with no change to your process. It is a comparable product for the same step — not a branded or drop-in item.
Same grading, typically 20 to 40 percent lower in price.
Request a free sample and test it on your own bench.
Named brand products are referenced only to identify the comparable item and prep step. We do not claim our product is identical to, or a replacement for, any trademarked product, and no affiliation or endorsement is implied.
Frequently Asked Questions
What is the difference between colloidal silica and alumina for final polishing?
Both are oxide final-polish abrasives. Colloidal silica polishes chemo-mechanically and generally produces a more deformation-free surface, which is why it is preferred for EBSD and soft or difficult materials. Alumina is a purely mechanical abrasive and can be a better fit where an oxide-free or non-chemical final polish is needed.
Why choose a low-crystallizing colloidal silica?
Standard colloidal silica dries into hard crystals that scratch samples and are difficult to clean off equipment. A low-crystallizing formulation resists that drying, reducing scratching and cleanup time and extending cloth and platen life.
What cloth should I use with colloidal silica?
A soft, napless synthetic polishing cloth is standard. Keeping a dedicated cloth for colloidal silica prevents contamination from earlier diamond steps.
Can colloidal silica be used on automated systems?
Yes. It is used on both manual and automated polishing systems. Adding a water rinse at the end of the cycle helps clear residual silica before it can dry.
How do I prevent silica staining or scratching?
Do not let the suspension dry on the sample or equipment. Flush with water near the end of the cycle, then rinse and dry the specimen promptly. The low-crystallizing formulation makes this easier but does not remove the need to rinse.
Is colloidal silica used outside metallography?
Yes. Its damage-free, chemo-mechanical finish makes colloidal silica standard in semiconductor and wafer polishing (silicon and sapphire), optics, medical implant finishing, and geological EBSD sample preparation. The low-crystallizing formulation reduces silica drying and scratching across all of these, not just metallographic work.
