By Jay Shah, Technical Team, Beta Diamond Products
Hot compression mounting is faster, cheaper per sample, and gives better edge retention, so it is the default for robust materials like steels and most metals. It is also where the market still votes: hot mounting resin remains our bigger seller, which tracks with how much routine metals work the average lab does. Cold castable mounting exists for everything hot mounting would damage: heat sensitive materials, pressure sensitive parts, delicate coatings, porous samples needing vacuum impregnation, and odd geometries. Decide with one question: can this sample tolerate roughly 170 degrees C and a few thousand psi for ten minutes? If yes, hot mount it. If no, or if you are unsure, go cold.
What hot mounting involves

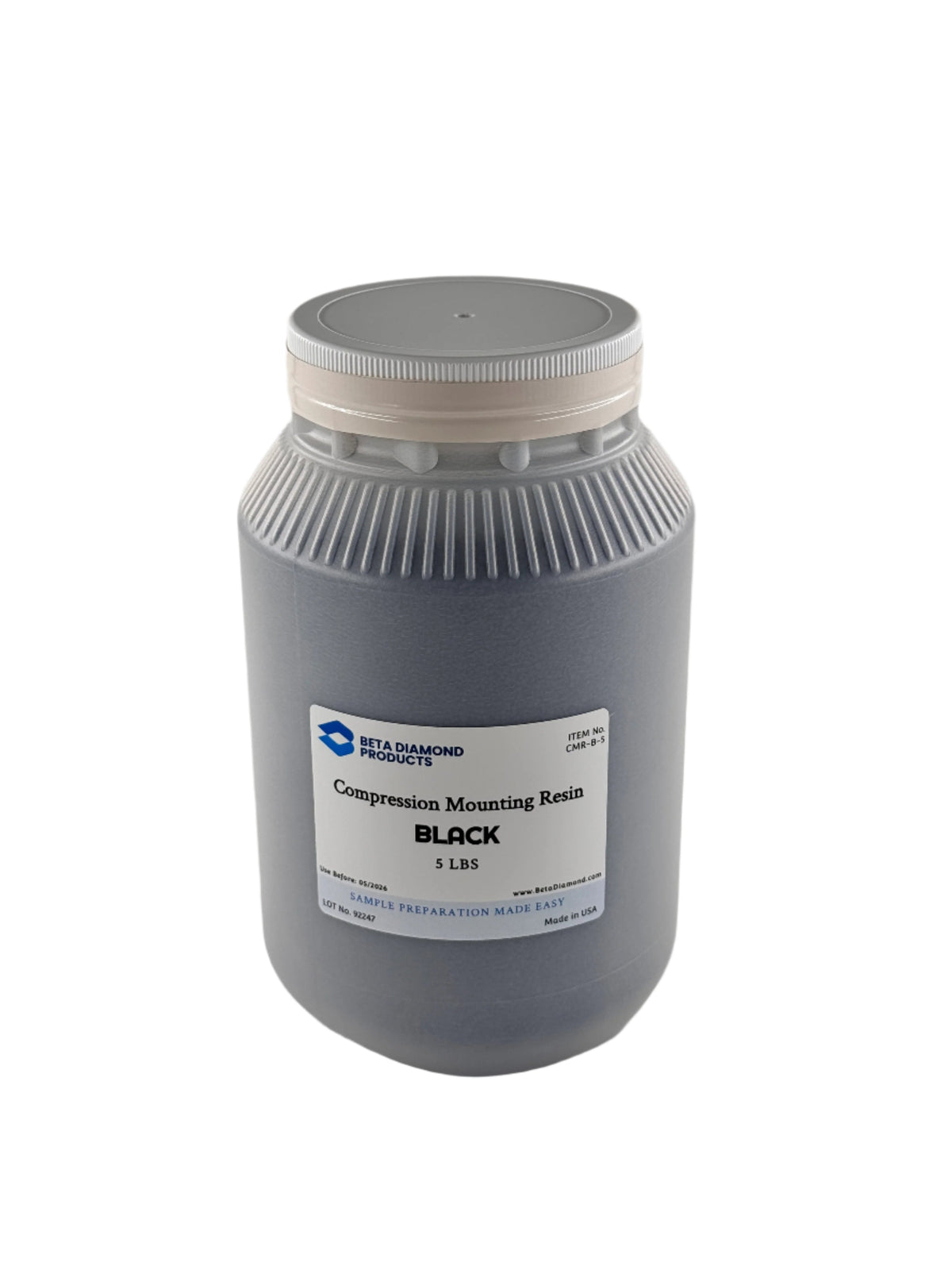

The sample sits face down in a cylinder, thermosetting resin powder pours over it, and the press applies heat around 150 to 180 degrees C with pressure of a few thousand psi for several minutes of cure plus cooling. Total cycle, eight to fifteen minutes, and the mount comes out hard, uniform, and ready to grind.
Resin choice matters more than people think. Phenolic is the economy option, perfectly fine for routine work but with measurable shrinkage that can leave a hairline gap at the sample edge. Mineral or glass filled epoxy resins shrink far less and hug the sample tightly, which is what you want when the analysis lives at the edge: coating thickness, case depth, surface treatments, edge decarburization. If edge retention drives your work, filled epoxy hot mounts paired with napless polishing cloths is the proven combination.
The limitations are built in. Heat can temper martensite, age aluminum alloys, melt polymers and solders, and alter anything with a low transformation temperature. Pressure can crush thin walled parts, electronic packages, and porous or cracked samples. And the press does one mount at a time, which gates throughput.
What cold mounting involves
Mix a two part resin, pour it over the sample in a reusable cup, and wait. No heat beyond what the curing reaction generates, no applied pressure, no press. You can pour twenty mounts in the time one hot cycle runs.
The resin families behave differently. Epoxies cure slowly, often six to twelve hours, but shrink the least, bond best, and accept vacuum impregnation, where curing under vacuum pulls resin into pores and cracks. For porous ceramics, thermal spray coatings, failure analysis of cracked parts, and mineral samples, vacuum impregnated epoxy is the only honest way to mount, because unsupported pore walls collapse and crack networks smear shut during grinding. Acrylics cure in minutes, wonderful for throughput, but shrink more and run a hotter exotherm; a large acrylic pour can briefly exceed 100 degrees C from its own reaction, so truly heat sensitive samples still want a slow cure epoxy in a small volume.
The decision in practice
Routine steel quality control: hot mount in phenolic, done. Coated or case hardened parts where edges are the measurement: hot mount in filled epoxy. Solder joints, polymers, electronics: cold epoxy. Porous or cracked anything: cold epoxy under vacuum. Twenty samples arriving at 4 pm: cold acrylic, and go home while they cure.
One practical habit regardless of route: mark the sample identity on the back of the mount before it enters the grinding queue. Mounts are anonymous from the front, and a mixed up failure analysis is a failure of its own.
We stock hot mounting resins, cold epoxy and acrylic systems, mounting cups, and release agents, and we will recommend a specific resin if you tell us what you are encapsulating. Samples free, as always.
