By Sam Desai, Technical Team, Beta Diamond Products
Match the bond to the material, and the rest follows. Metal bonded, sintered, blades suit general purpose sectioning of metals, composites, and tougher samples; they hold their diamond firmly and last a long time. Resin bonded blades suit very hard brittle materials, sintered carbides, hard ceramics, glass, minerals; the softer bond wears away deliberately to expose fresh sharp diamond as the old grains dull. Choose backwards, a metal bond on hard ceramic, and the blade glazes, rubs, heats the sample, and cuts almost nothing.
Our blade customers are a broader crowd than most metallography suppliers ever talk to: metallographers sectioning alloys, petrographers and geologists trimming rocks, and lapidary users cutting gem material. The selection logic is identical across all of them, because the blade only cares about hardness and brittleness, not what the sample is called.
How a diamond blade actually works
A wafering blade is not a saw with teeth. It is a thin steel core whose rim carries diamond grit locked in a bonding matrix, and it cuts by abrasion: thousands of tiny diamond edges each scratching away a little material. Performance depends on whether the bond releases dull diamonds at the right rate, whether the diamond concentration suits the material, and whether you run sensible speed and load.
The bond rule is counterintuitive until it clicks: hard materials want soft bonds, soft materials want hard bonds. Hard ceramic dulls diamond quickly, so the bond must erode and surrender dulled grains, exposing fresh grit; that is the resin bond. Ductile metal barely dulls diamond at all, so the bond should grip each grain as long as possible for blade life; that is the metal bond.
Concentration follows similar logic. Lower diamond concentration on very hard materials puts more force on each grain so it actually bites. Higher concentration on softer, gummier materials spreads the work and resists loading, where soft swarf clogs the rim.
A selection shortcut
Steels, most metals, PCBs, bone, polymers, general lab work: metal bonded blade, medium to high concentration. Cemented carbide, alumina, zirconia, silicon nitride, sapphire, glass, agate and hard gem rough, hard minerals: resin bonded blade, lower concentration. Mixed or laminated samples, a hard coating on a metal substrate, an electronic package: usually metal bond, entering the cut from the hard side, slow feed. Delicate or irreplaceable samples: thinner blade, slower everything.
Thickness trades stiffness against kerf and damage. Standard wafering blades run about 0.15 to 0.5 mm. Thinner blades waste less material and impart less damage but wander and dish if pushed; for thin sections or small precious samples, go thin and go slow.
Running the blade right
Most cutting problems are operating problems that get blamed on the blade. Precision wafering saws typically run from the low hundreds to low thousands of rpm, hard brittle materials at the lower end. Load should be light enough that the blade cuts at its own pace; forcing the feed deflects the blade, wedges the cut, and chips brittle samples at breakthrough. Coolant is mandatory, both to carry heat away from the sample, since sectioning heat alters the very structure you are about to study, and to flush swarf from the kerf.
If a blade stops cutting and starts squealing or burnishing, it has glazed: dull diamonds, no fresh ones exposed. Dress it with a few cuts into a dressing stick, which erodes the bond and reopens the rim. A blade that glazes constantly on your material is the wrong bond, and no dressing fixes a selection error.
Compatibility and sizing

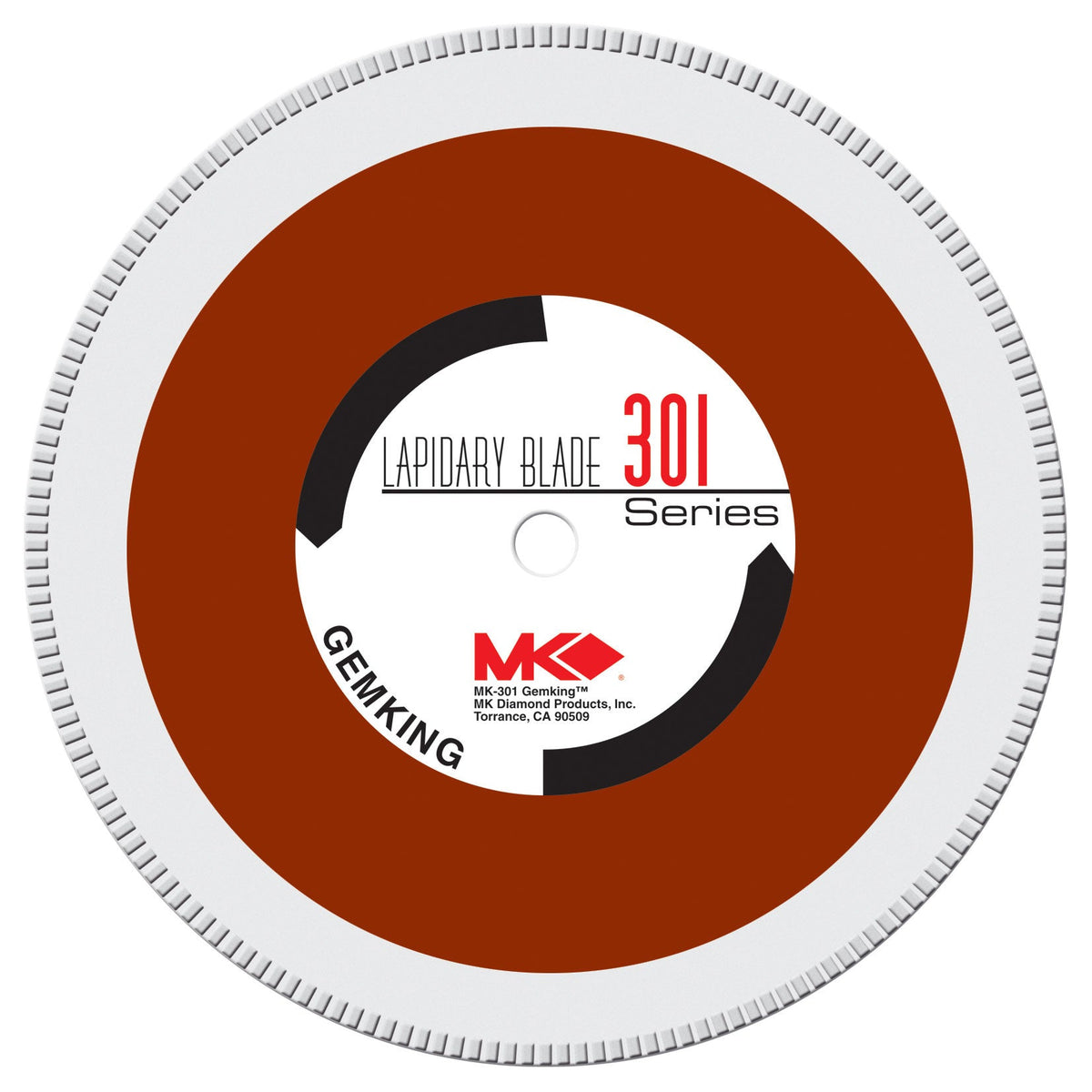

Wafering blades are dimensionally standardized, arbor sizes, diameters, thicknesses, so blades interchange across Buehler, Struers, Allied, LECO, and similar precision saws. Our blades, including the 301 and 303 compatible series, drop straight onto those machines in catalog sizes covering the standard range. Tell us the material you cut most and the saw you run, and we will spec bond, concentration, and thickness, with a test blade against your current one before you commit.
