Silicon Carbide (SiC) Grinding Paper Rolls
Comparable to Buehler CarbiMet silicon carbide paper, Struers SiC grinding paper, and Allied High Tech silicon carbide paper for the same planar and fine grinding steps — at 20 to 40 percent lower cost.
Overview

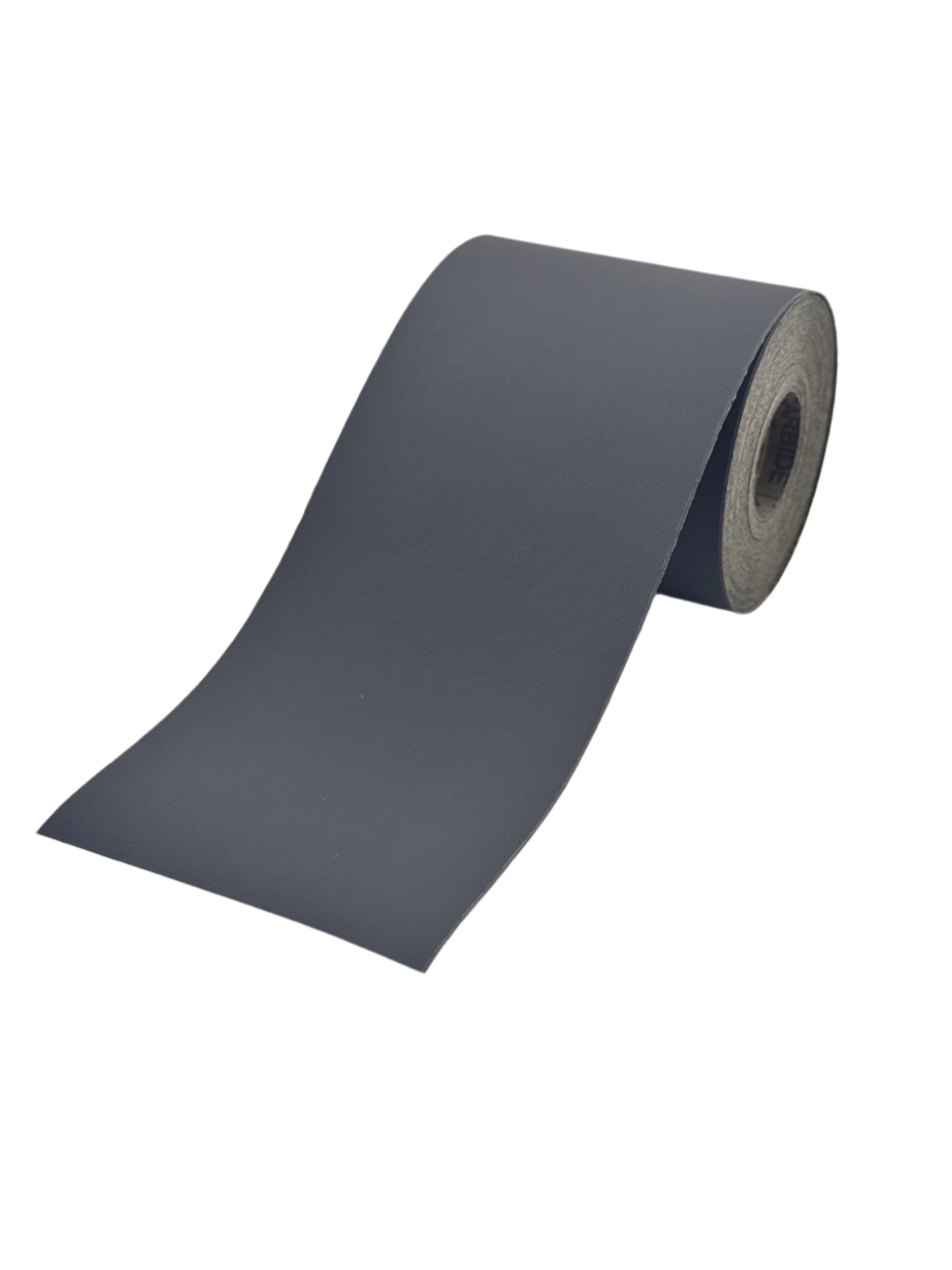

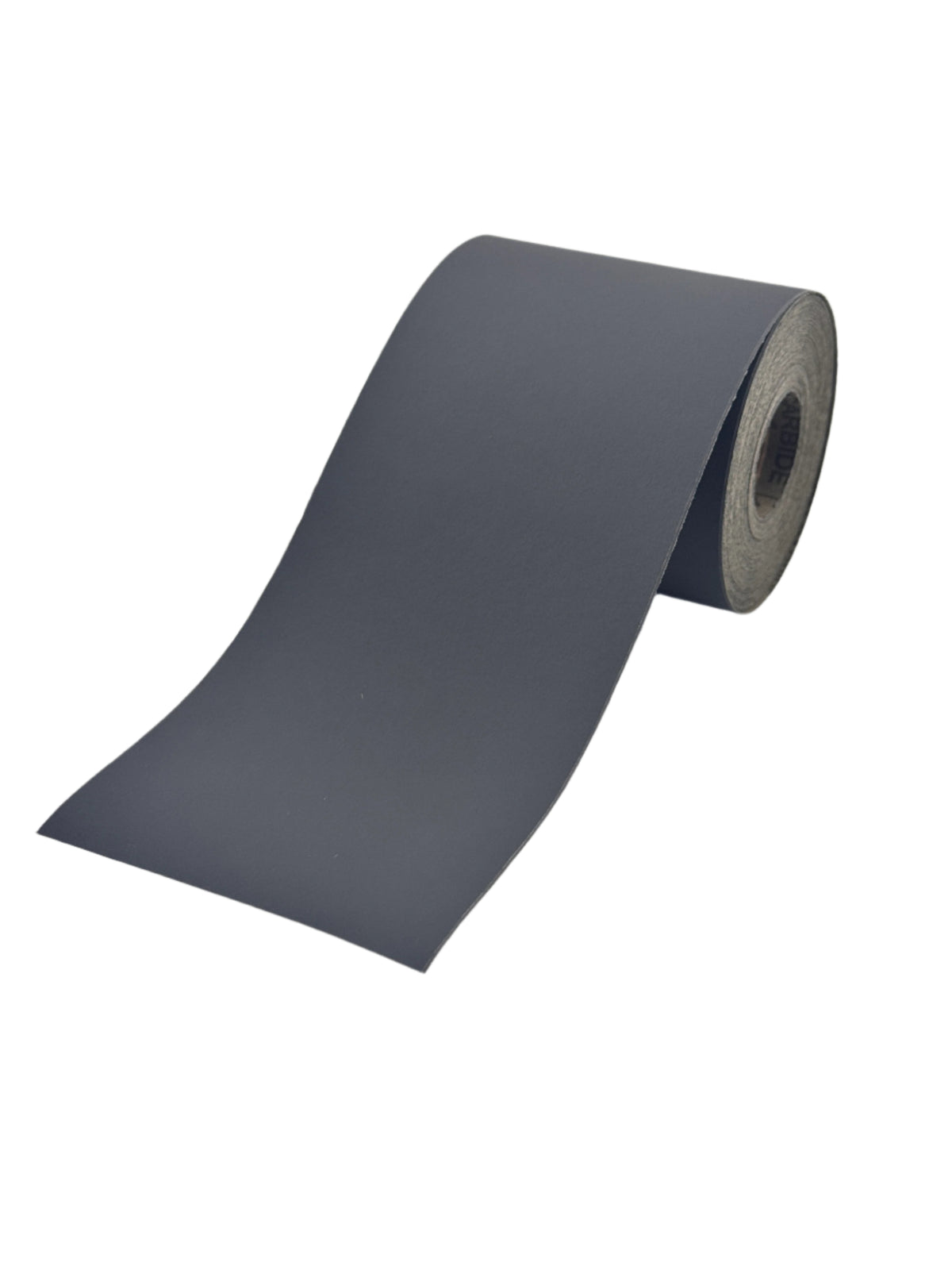

Silicon Carbide (SiC) Grinding Paper Rolls
What This Product Is
Silicon carbide grinding paper in continuous roll form, for hand grinding and for cutting to length. The roll format lets a lab tear off exactly what it needs and is economical for high-volume grinding. Silicon carbide's hardness and sharp cut make it the standard abrasive for planar and fine grinding across a wide range of materials.
Intended Use in Metallography
Used during planar and fine grinding, after sectioning, to flatten specimens and remove sectioning damage before polishing. Selected when:
- Hand grinding at a bench or sink is the method
- A continuous roll is more economical than discs for the volume
- A specific length or strip is cut to fit the setup
Typical Applications
- Metals and alloys
- General metallographic specimens in research and production
- High-volume hand-grinding operations
Beyond metallography, SiC grinding rolls are also used in:
- Petrography and geological sample grinding
- Ceramics and composite materials
- General materials preparation and lapping
When This Product Is NOT Ideal
- When PSA or magnetic discs are needed for a specific automated platen
- For high-durability, high-throughput work better served by rigid or diamond discs
Specifications
| Abrasive type | Silicon carbide |
| Form | Coated abrasive paper, continuous roll |
| Grits | 120 to 1200; the 800 (P2400), 1000 (P3000), and 1200 (P4000) grits are slurry-coated for the most consistent fine finish |
| Use | Wet or dry, hand grinding |
| Backing | Plain; sold individually |
| Roll sizing | 3-7/16 in wide × 60 ft × 1 in core (180, 240, 320, 360, 400, 600 grit); 3-7/16 in wide × 75 ft × 1 in core (800, 1000, 1200 grit) |
| Application | Metallographic planar and fine grinding |
| Grit | 120 (P120), 180 (P180), 240 (P280), 320 (P400), 360 (P600), 400 (P800), 600 (P1200), 800 (P2400), 1000 (P3000), 1200 (P4000) |
| Custom sizing | Custom sizes and concentrations are made to spec if what you need is not listed |
| Compatibility | Buehler, Struers, LECO, Allied, and PACE — and all other major brands. |
Compatibility and Equivalents
Made for the same planar and fine grinding steps as these brand products:
Fits Buehler, Struers, LECO, Allied, and PACE systems — and all other major brands — with no change to your process. It is a comparable product for the same step — not a branded or drop-in item.
Same grit grading, typically 20 to 40 percent lower in price.
Request a free sample and test it on your own equipment.
Named brand products are referenced only to identify the comparable item and prep step. We do not claim our product is identical to, or a replacement for, any trademarked product, and no affiliation or endorsement is implied.
Frequently Asked Questions
What grits do the rolls come in?
120 through 1200, with the 800, 1000, and 1200 grits slurry-coated for a more consistent fine finish.
Can the rolls be used wet or dry?
Yes, both. Wet grinding reduces heat and clears debris; dry grinding is used where a wet setup is not practical.
How are the rolls sized?
3-7/16 in wide, in 60 ft rolls for 180–600 grit and 75 ft rolls for 800–1200 grit, on a 1 in core.
Can SiC grinding rolls be used outside metallography?
Yes. Silicon carbide grinding paper is used across petrography and geological sample grinding, ceramics and composites, and general materials preparation — anywhere controlled planar grinding is needed.
