Comprehensive Guide to Metallographic Sample Preparation

Introduction

Metallographic sample preparation is a crucial step in material analysis, ensuring accurate microstructural examination. Whether for quality control, failure analysis, or research, proper preparation techniques are essential. Poor sample preparation can lead to inaccurate results, misinterpretations, and wasted time. This guide will walk you through the key stages of metallographic sample preparation, optimizing efficiency and accuracy using high-quality products from BetaDiamond.com.

By selecting the right tools and following best practices, you can minimize surface damage, achieve superior surface finishes, and reveal true microstructural details. Let's explore each step in detail.

Step 1: Sectioning the Sample

Why Proper Sectioning Matters

Sectioning is the first step in preparing a metallographic specimen. It involves cutting a sample from a larger material while minimizing thermal and mechanical damage. Improper sectioning can introduce cracks, burn marks, or deformation, leading to inaccurate results during analysis. Using high-quality diamond cut-off wheels ensures precision cutting while preserving the material's integrity.

Recommended Products:

  • Premium Diamond Cut-Off Wheels
    • Designed for precision cutting with minimal deformation
    • Available in various grit sizes for different material types
    • Ensures a smooth, clean cut for further processing
  • Diamond Wafering BladesShop Now
    • Provides precise sectioning for delicate samples
    • Reduces heat generation and material loss
    • Ideal for brittle and fine-sectioned specimens

Step 2: Mounting the Sample

Hot vs. Cold Mounting

Mounting encases the sample in a resin to provide structural support during grinding and polishing. Depending on the material and analysis needs, you can choose between:

  • Hot mounting: Uses thermosetting resins and requires a mounting press. This method provides a strong, durable mount, ideal for hard metals.
  • Cold mounting: Ideal for heat-sensitive materials, using liquid resins that cure at room temperature. This method is best for delicate or soft materials.

Recommended Product:

  • Epoxy Resin Mounting Kit
    • Provides excellent edge retention
    • Ideal for delicate samples prone to heat damage
    • Ensures a firm grip for subsequent preparation steps

Step 3: Grinding for a Smooth Surface

Importance of Proper Grinding

Grinding removes deformations from sectioning and provides a flat surface for further processing. Starting with coarse grit and moving to finer abrasives ensures a scratch-free surface. Skipping grit sizes or applying excessive pressure can cause deep scratches and surface damage, impacting the final analysis.

Recommended Products:

  • Diamond Grinding Discs
    • Available in multiple grit sizes for progressive grinding
    • Provides uniform material removal
    • Extends the lifespan of consumables while ensuring smooth surfaces
  • Silicon Carbide Grinding PapersShop Now
    • Offers efficient material removal with consistent performance
    • Available in different grit sizes for precise surface refinement
    • Cost-effective solution for manual and automated grinding

Step 4: Polishing to a Mirror Finish

Achieving Optimal Surface Quality

Polishing eliminates scratches from grinding and prepares the sample for etching. Using high-quality diamond suspensions and polishing cloths ensures a consistent, scratch-free finish.

Recommended Products:

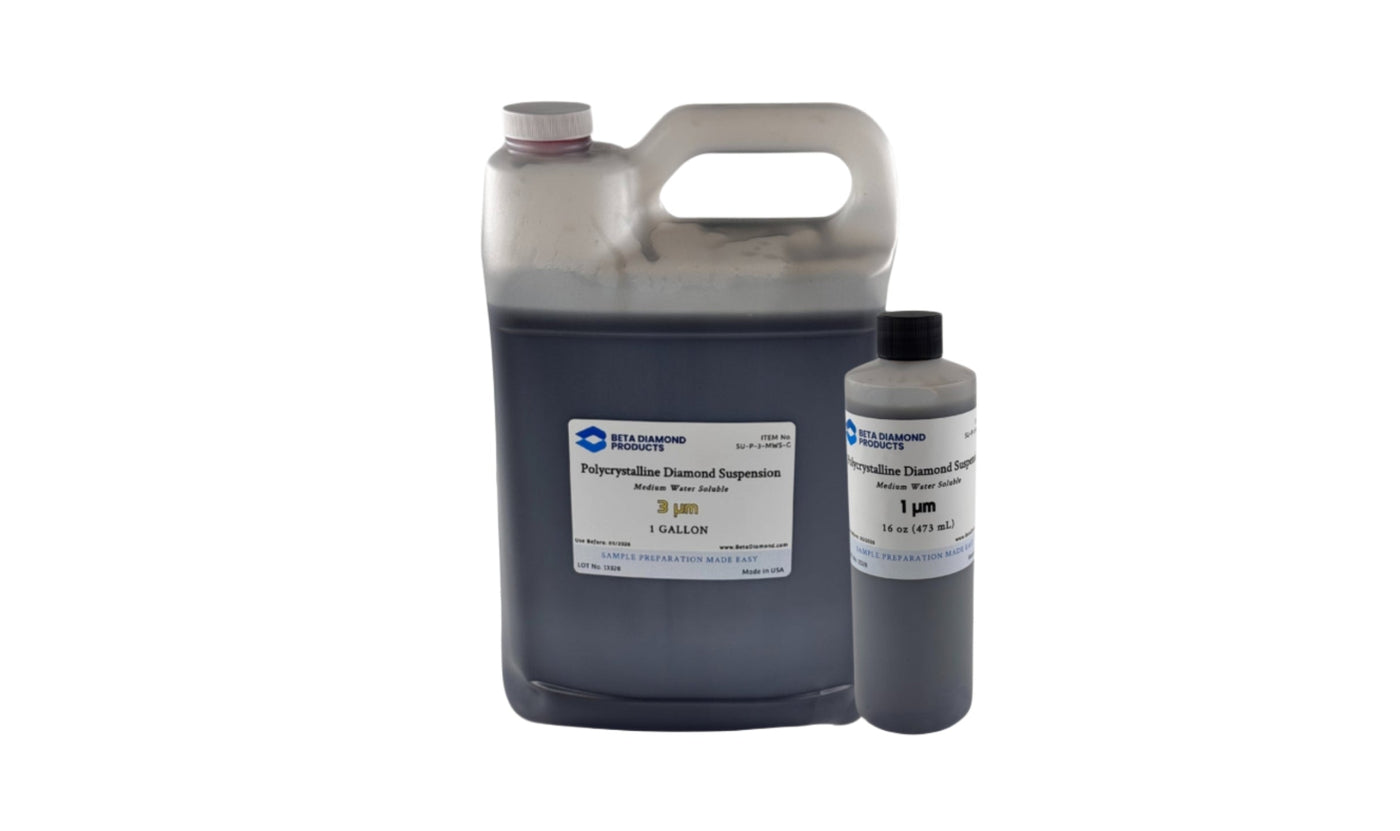

  • Diamond Suspension (1µm, 3µm, 6µm, 9µm, 15µm)Shop Now
    • Delivers precise, uniform polishing
    • Available in multiple micron sizes for customized finishing
    • Ensures fast and effective removal of grinding marks
  • Premium Polishing ClothsShop Now
    • Designed for final-stage polishing
    • Available in different textures for optimized surface finishes
    • Enhances sample clarity for accurate microstructural analysis
  • Diamond CompoundShop Now
    • Provides an ultra-fine finish for detailed sample analysis
    • Available in various micron sizes to match precision needs
    • Enhances surface smoothness and improves microscopic clarity

Step 5: Etching to Reveal Microstructure

Selecting the Right Etchant

Etching applies a chemical reagent to the polished sample, revealing microstructural details such as grain boundaries, phases, and inclusions. Different metals require different etchants for optimal contrast. Stainless steels, for instance, respond well to nitric acid solutions, while aluminum alloys may require Keller’s reagent.

Recommended Product:

  • Etching Reagents and Kits
    • Formulated for various metal compositions
    • Helps enhance microstructural visibility
    • Ensures reliable and repeatable results

Step 6: Microscopic Analysis

Examining the Prepared Sample

Once the sample is etched, it is ready for microscopic examination. High-quality sample preparation ensures clear imaging and accurate analysis. Optical and electron microscopes can provide insights into material properties, defects, and grain structures.

Conclusion

Proper metallographic sample preparation is essential for reliable material analysis. By using premium products like diamond cut-off wheels, wafering blades, silicon carbide grinding papers, diamond suspension, and polishing compounds from BetaDiamond.com, you can achieve superior results while maintaining efficiency.

Explore our full selection of metallographic consumables today and enhance your sample preparation process with the best tools in the industry!
