Best Practices for Grinding and Polishing in Metallography

Introduction

Grinding and polishing are essential stages in the metallographic sample preparation process. These steps refine the surface of a specimen to remove deformation, scratches, and irregularities introduced during sectioning and mounting. Proper execution of grinding and polishing ensures that the microstructure of the material is revealed clearly and without distortion, which is critical for accurate analysis under a microscope.

This guide provides an in-depth overview of the best practices, tools, and techniques for achieving consistent and high-quality surface finishes in metallographic sample preparation.

The Purpose of Grinding and Polishing

Why It Matters

Before a sample can be analyzed microscopically, it must have a flat, smooth, and defect-free surface. Grinding removes the gross deformation and surface irregularities introduced by sectioning. Polishing, on the other hand, eliminates the finer scratches from grinding and creates a reflective, mirror-like surface necessary for high-resolution imaging and accurate interpretation of microstructures.

Accurate material analysis depends on the ability to observe a sample's true structure without interference from surface defects. Grinding and polishing serve to:

  • Expose Microstructural Features: Including grain boundaries, inclusions, phases, and defects.
  • Prevent Misinterpretation: Surface scratches or deformation may mimic or obscure actual material features.
  • Enable Reproducibility: Consistently prepared surfaces ensure that multiple samples can be compared reliably.
  • Enhance Contrast: A polished surface reflects light evenly, improving clarity under reflected light microscopy.
  • Support Failure Analysis: Identifying root causes in materials depends on clean, undistorted surfaces.

Without proper grinding and polishing, critical material features could be missed or misinterpreted, compromising the integrity of the entire analytical process. This is especially important in industries where safety, performance, and compliance depend on accurate material verification.

Grinding: A Step-by-Step Overview

Step 1: Initial Grinding (Planar Grinding)

Planar grinding is the first step in mechanically flattening the sample. It removes major surface irregularities and the damage introduced during sectioning.

  • Use coarse silicon carbide grinding papers (Shop Now) or diamond grinding discs (Shop Now).
  • Begin with 80–120 grit for heavy stock removal.
  • Maintain firm, even pressure and rotate the sample periodically for uniform results.

Step 2: Intermediate Grinding

The intermediate grinding step removes deeper scratches and deformations left by the coarse grinding phase.

  • Progress through 240, 320, 400, and 600 grit abrasives.
  • Thoroughly clean the sample between each grit change to avoid contamination.
  • Use consistent water flow to cool the sample and remove debris.

Step 3: Fine Grinding (Optional)

Some materials, especially soft alloys or precision applications, may benefit from an additional fine grinding step before polishing.

  • Use finer silicon carbide powders (Shop Now) applied manually or with slurry-based systems.
  • This step further smooths the surface in preparation for polishing.

Tips for Effective Grinding

  • Maintain a flat, even surface by rotating the specimen during grinding.
  • Ensure proper water flow to lubricate and cool the sample, especially for metals sensitive to heat.
  • Always use clean, fresh abrasives to avoid embedded contaminants and surface artifacts.

Polishing: A Step-by-Step Overview

Step 1: Rough Polishing

Rough polishing removes the final layer of deformation and the scratches introduced by grinding.

  • Apply 9µm, 6µm, or 3µm diamond suspension (Shop Now) on a medium-hard polishing cloth.
  • Move the sample in figure-eight or circular motions, ensuring even coverage.
  • Keep the cloth lubricated and avoid overheating the sample.

Step 2: Intermediate Polishing

This step bridges the gap between rough polishing and final polishing.

  • Use 3µm or 1µm diamond suspension or compound (Shop Diamond Compound) on a softer cloth.
  • Adjust polishing pressure as needed to balance surface quality and time efficiency.

Step 3: Final Polishing

Final polishing is used to achieve a mirror-like surface free from scratches and artifacts.

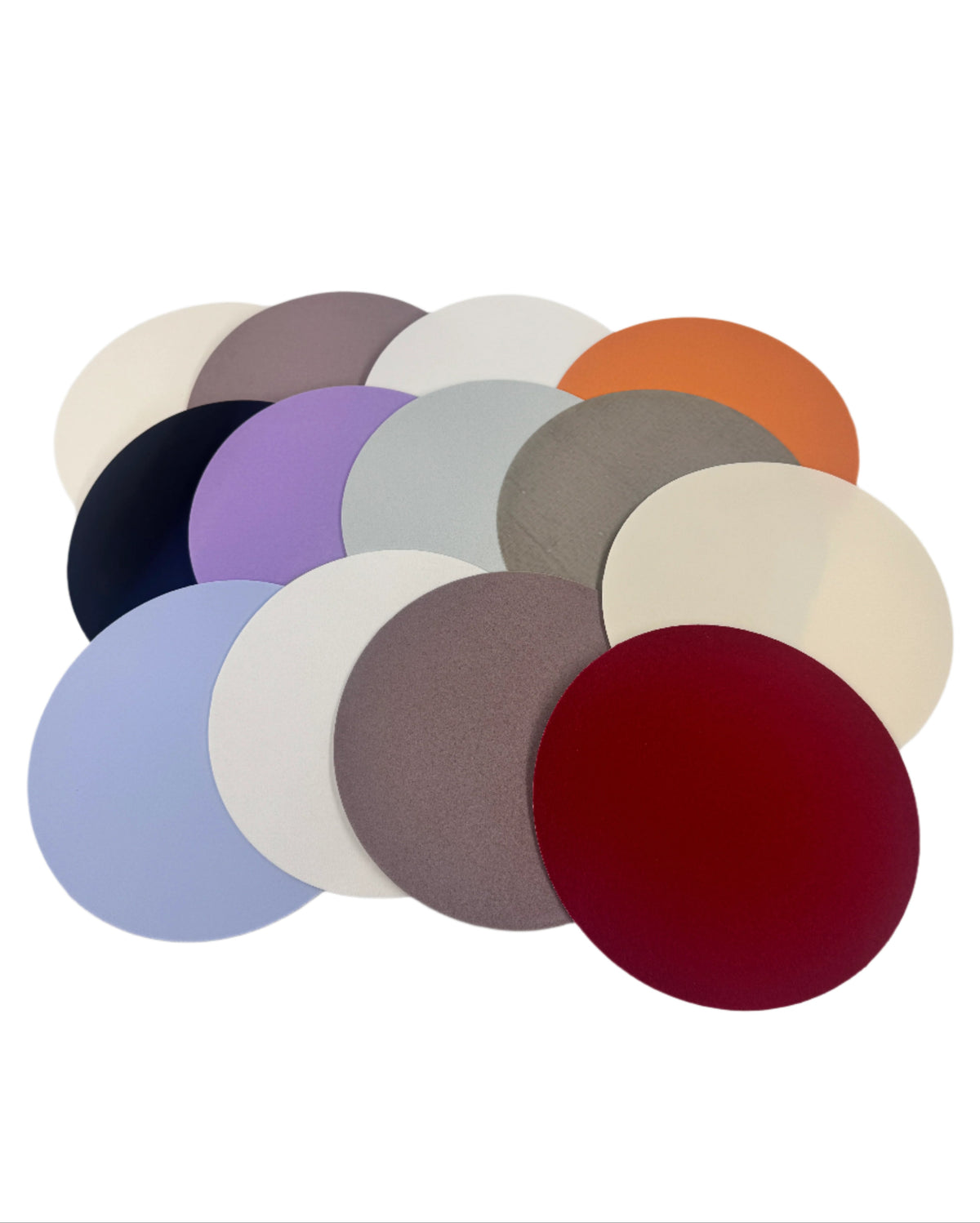

  • Employ 1µm or submicron diamond compound or suspension with a soft polishing cloth (Shop Now).
  • For some materials, a final step with colloidal silica may improve reflectivity and clarity.
  • Monitor the sample under a microscope to confirm clarity and absence of relief.

Step 4: Final Rinse and Inspection

  • Thoroughly clean the sample using water or alcohol-based rinses.
  • Dry with compressed air or lint-free wipes.
  • Inspect under a microscope to ensure the surface is free from scratches, pits, or contaminants.

Tips for Effective Polishing

  • Apply polishing suspensions evenly to avoid localized over-polishing.
  • Avoid excessive pressure that may result in relief or pull-out of softer phases.
  • Clean the sample thoroughly after each polishing stage.

Common Pitfalls to Avoid

  • Skipping Grit Sizes: Leads to incomplete scratch removal and poor surface quality.
  • Overheating: May alter the microstructure, especially in heat-sensitive materials.
  • Contaminated Polishing Cloths: Can introduce abrasive particles and cause surface damage.
  • Inadequate Cleaning: Results in carryover of abrasive particles and scratch retention.

Optimizing for Different Materials

Different materials require customized grinding and polishing techniques:

  • Ferrous Metals: Respond well to water-based lubricants and standard diamond abrasives.
  • Aluminum and Soft Alloys: Benefit from low-pressure grinding and final polishing with colloidal silica.
  • Ceramics: Require harder abrasives and may need longer polishing times.
  • Composites: Require careful selection of cloths and low-force polishing to prevent resin smearing or fiber pull-out.

Conclusion

Achieving a perfect finish in metallography requires attention to detail, proper technique, and a deep understanding of how surface preparation impacts microstructural analysis. Grinding and polishing are not simply routine steps—they are foundational to revealing the true nature of a material.

By adhering to best practices and tailoring your process to the specific material being analyzed, you can avoid costly errors, ensure accurate results, and uphold the quality standards expected in research and industry. Whether you are preparing samples for failure analysis, research, or quality control, mastering the art of grinding and polishing is essential for uncovering meaningful, reproducible insights.
